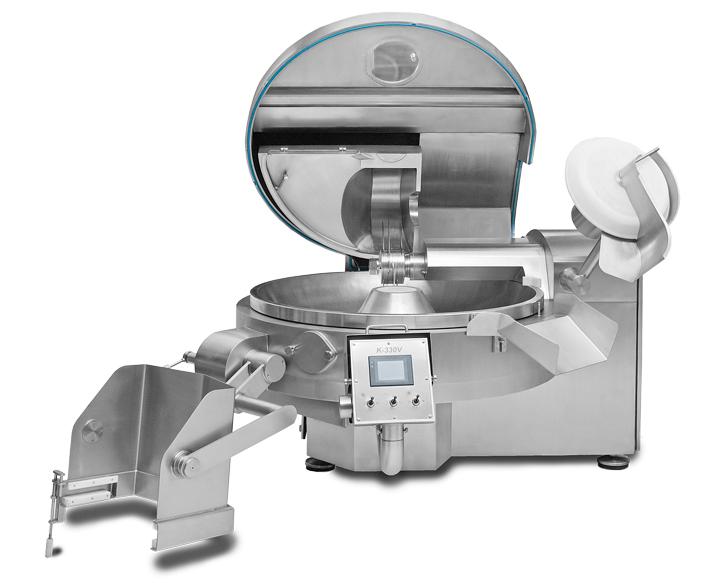

Vacuum High-Speed Cutter PSS K VF 200 - 300

Send enquiry
Vacuum High-Speed Cutter PSS K VF 200 - 300
  • PSS Vacuum High-Speed Cutters are designed for food industry operations for fine cutting, mixing and emulsifying of processed materials.
  • PSS Vacuum High-Speed Cutters master the preparation of fine-grinded as well as coarse-grinded products and ensure their excellent quality.
  • The easy and fast loading of the machine is ensured by the high-level lifting device.
  • PSS Vacuum High-Speed Cutters are supplied with the quality PSS knife system that guarantees a very fast product processing and achieving of the desired quality for a wide range of products.
  • The original knives emplacement is also a guaranty for a minimal mechanical wear and a lower machine noise.
  • The PSS unloading device enables a fast and uncomplicated emptying.
OPTIONS:
  • Water dosing.
Main Characteristics:
Parameter
PSS K 200 VF PSS K 330 VF
Cutting head input kW 90 110
Control by frequency converter + +
Bowl input, kW 1,5 1,5
Unloading device input, kW 1,1 1,1
Machine weight, kg 4800 550
Main dimensions (LxWxH), mm
2804x2640x2600
 3050x2910x2885
Cutting speed, L
120
 130
Bowl volume, m/s.
200
 330
Vacuum, m3/h
200
 200
Voltage network 3/PE/N, 50Hz, 230/400V, TN-C-S 3/PE/N, 50Hz, 230/400V, TN-C-S
Control voltage
230/24 V AC
 230/24 V AC
