PSS SG 200 Speed Grinder, capacity: 4,0-8,0 t/h

Send enquiry

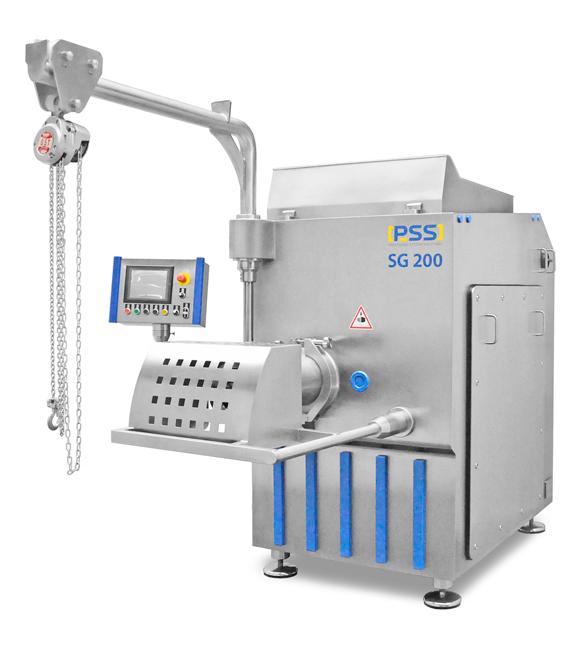

PSS SG 200 Speed Grinder, capacity: 4,0-8,0 t/h.
  • PSS SG 200 Speed Grinder is a versatile and universal device designed for fast cutting of any kind of fresh meat and other food products.
  • PSS SG 200 allows a coarse as well as very fine cutting and provides superior quality end product.
  • The device is a guarantee for an effective and practical application and ensures a high performance and a reliable operation.
  • Fresh meat, prepared for processing, is fed into the PSS SG hopper, where it is collected by the feed-cutting worm and subsequently moved towards the cutting set.
  • The end product of desired structure is acquired according to a chosen cutting set.

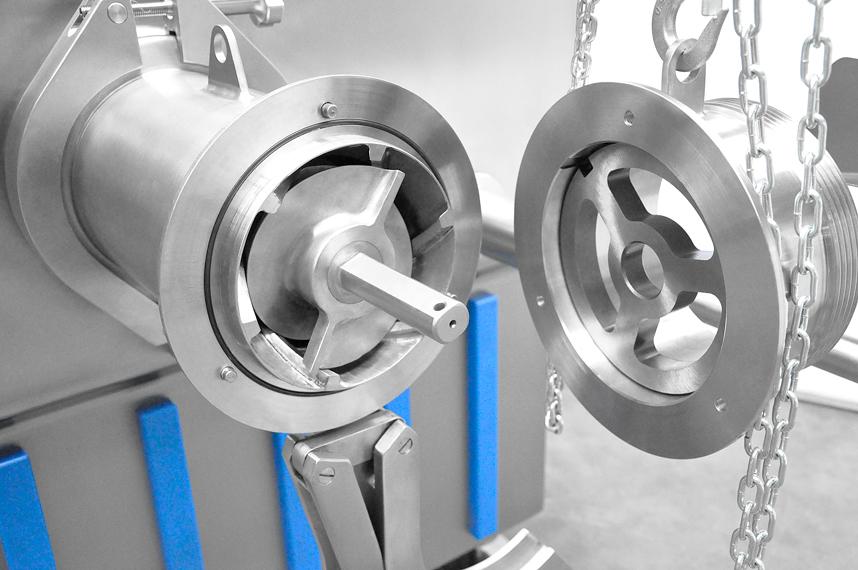

  • The quality PSS cutting system ensures a smooth cutting, a minimal worn away and an obtaining of premium quality product.
OPTIONS
  • PSS BES bone elimination system.
  • Feeding device.
  • Mirror-polished worm.
  • Mirror-polished hopper.
  • Inspection step.
  • Inspection platform.
  • Inspection platform with safety railing.
  • Hopper walls extensions.
  • Internet remote access.
Main characteristics
Parameter PSS-SG-200
Worm input, kW 30
Control by frequency converters yes
Weight, kg 1790
Dimensions (LхWхH), mm
2000x1300x2000
Productivity, kg / h.
А) fine grind
B) coarse grind

4000
8000
Cutting set diameter 200
Hopper volume, L 280-220
Voltage network 3/PE/N, 50Hz, 230/400V, TN-C-S
Control voltage
230/24 V AC
