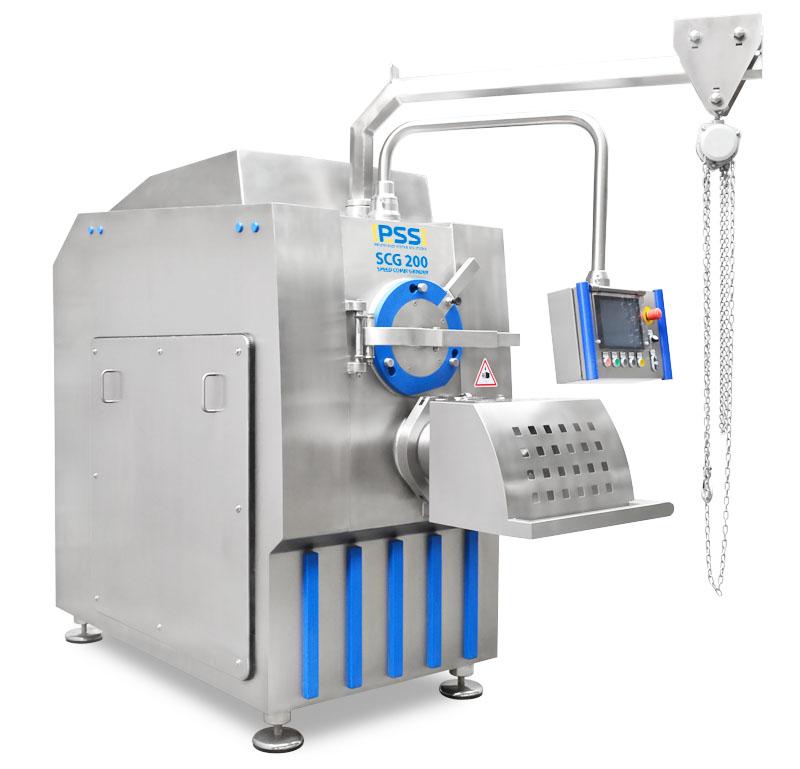

PSS SCG 200 Speed Combi Grinder, capacity: 4,0-13,0 t / h

Send enquiry
PSS SCG 200 Speed Combi Grinder, capacity: 4,0 - 13,0 t / h
  • PSS SCG is designed for food industry operations for fast grinding of any kind of fresh and frozen meat as well as whole frozen meat blocks with temperatures down to -25 °C.
  • PSS SCGs ensure an excellent product quality in range from coarse to very fine cutting.
  • The frozen meat blocks are loaded into the PSS SCG hopper, where they are cut by the feeding worm; the process creates neither meat dust nor small materials.
  • Pre – grinded material is moved towards the cutting head by the processing worm.
  • A desired structure is achieved according to choice of final hole plate.
  • Separate drives with frequency converters enable an independent control of each worm.
OPTIONS
  • PSS BES bone elimination system
  • Mirror - effect polished worm
  • Mirror - effect polished hopper
  • Inspection footsteps
  • Inspection platform
  • Extension of hopper walls
  • Remote access via internet
Main chracteristic
Parameter PSS-SGG 200
Cutting worm input, kW 55
Feeding wing input, kW 11
Control by frequency converters yra
Weight kg 300
Transport dimensions, mm
3200x1500x2692
Capacity* kg/h:
А) Fine cutting;
B) Coarse cutting.

A) 4000;
B) 13000;
Cutting set diameter, mm 200
Hopper volume, L 300
Voltage network 3/PE/N, 50Hz, 230/400V, TN-C-S
Control voltage
230/24 V AC
 * depends on meat temperature and chosen cutting set.
Notice:
  • As a result of continuous process improvement and modernization of our products there may be deviations and changes in characteristics and descriptions of machines.
  • Therefore the Manufacturer reserves the right to change some specifications and technical parameters of its products.
