PSS SCG 280 Speed Combi Grinder, capacity: 6-20 t / h

Send enquiry
PSS SCG 280 Speed Combi Grinder, capacity: 6-20 t / h
  • PSS SCG is designed for food industry operations for fast grinding of any kind of fresh and frozen meat as well as whole frozen meat blocks with temperatures down to -25 °C.
  • PSS SCGs ensure an excellent product quality in range from coarse to very fine cutting.
  • The frozen meat blocks are loaded into the PSS SCG hopper, where they are cut by the feeding worm; the process creates neither meat dust nor small materials.
  • Pre – grinded material is moved towards the cutting head by the processing worm.

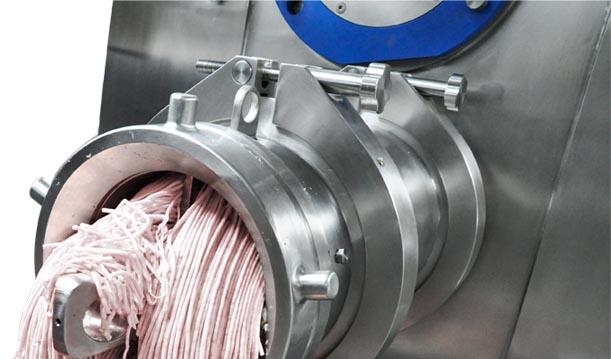

  • A desired structure is achieved according to choice of final hole plate.
  • Separate drives with frequency converters enable an independent control of each worm.
OPTIONS
  • PSS BES bone elimination system
  • Mirror - effect polished worm
  • Mirror - effect polished hopper
  • Inspection footsteps
  • Inspection platform
  • Extension of hopper walls
  • Remote access via internet
Main characteristics
Parameter PSS-SGG 280
Cutting worm input, kW 110
Feeding wing input, kW 18.5
Control by frequency converters Yes
Weight kg 4400
Transport dimensions, mm
3405x1435x2892
Capacity* fresh meat, kg/h:
А) Fine cutting;
B) Coarse cutting.

A) 6500;
B) 22000;
Frozen meat, kg/h:
А) Fine cutting;
B) Coarse cutting.

A) 3000;
B) 14000.
Transport dimensions, mm 280
Hopper volume, L 550
Voltage network 3/PE/N, 50Hz, 230/400V, TN-C-S
Control voltage
230/24 V AC
