Frozen Meat Grinder PSS RMM, capacity 1500-3500 kg/h

Send enquiry
Frozen Meat Grinder PSS RMM, capacity 1500-3500 kg/h

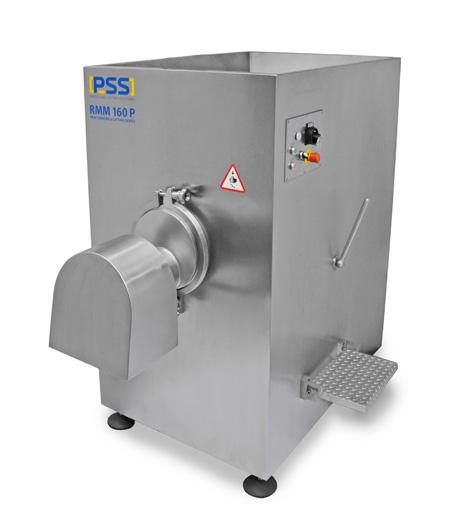

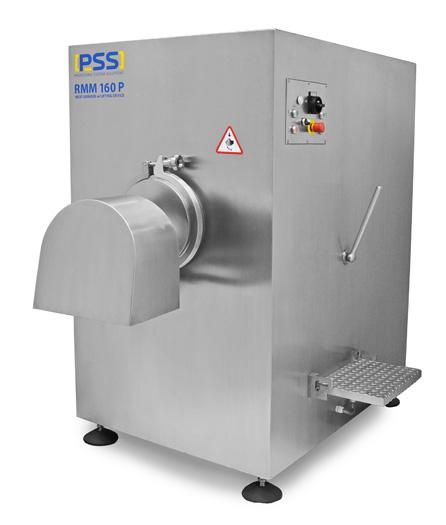

  • PSS RMM 160 Frozen Meat Grinder is a device designed for fast and gentle grinding of any fist-sized frozen meat with temperature to -10 ºC,
  • As well as for fresh meat grinding. Its introduction into service is a guarantee for economic and practical use and achievement of the best results when grinding.
  • PSS RMM 160 Frozen Meat Grinder guarantees the excellent quality of final product.
  • The fresh or frozen meat is fed into the PSS RMM hopper, where it is collected by two specially modified worms.
  • Then the material is moved towards a cutting assembly by short cutting worm.
  • The desired structure can be achieved depending on the composition of selected cutting assembly.
OPTIONS
  • Sinew separation device.
  • Feeding/mixing paddles.
  • Mirror-effect polished worms.
  • Mirror-effect polished hopper.
  • Feeding worms for fresh meat.
  • PSS P lifting device.
  • Hopper wall extension.
  • Reduction of hopper wall height.
TECHNICAL DATA
Parameter
PSS RMM 160 PSS RMM 3000
Cutting worm input, kW 22 22
Feeding worm input kW 1,9 1,5/1,9
Machine weight, kg 1350 1750
Main dimensions (LxWxH), mm
1635x868x1430
 1850x1068x1700
Capacity, kg/h:
A) Fine cutting;
B) Coarse cutting;

A) 1500;
B) 2500;

A) 1800;
B) 3500;
Cutting set diameter, mm 160
160/200
Hopper volume, L
200
 270
Voltage network
3/PE/N, 50Hz,
230/400V
3/PE/N, 50Hz,
230/400V
Control voltage
230/24 V AC
230/24 V AC
