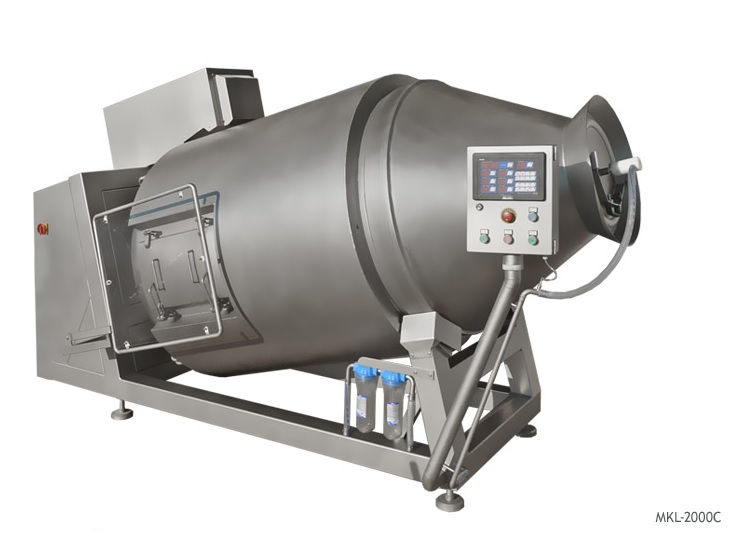

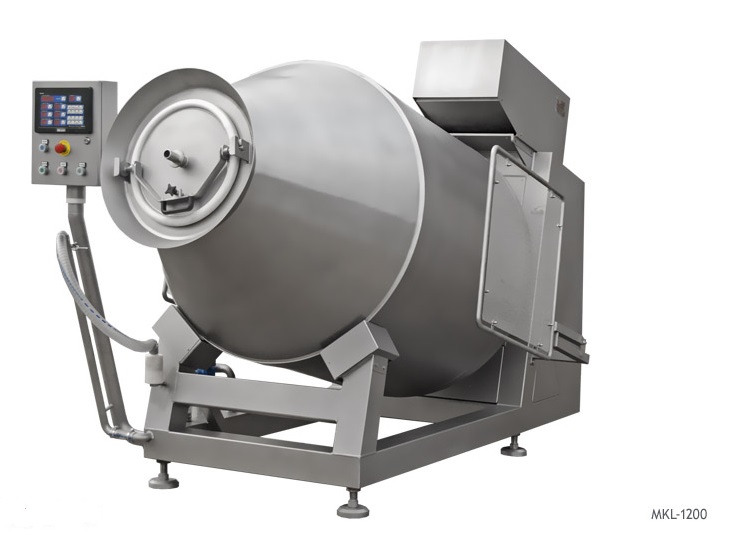

Vacuum Massager type: MKL

Send enquiry
Vacuum Massager type: MKL
Application:
  • Tumbler is designed for vacuum plasticizing different kinds of meat during curing in the production of meat and smoked meat.
  • In obliquely lying drum there are used three spiral-shaped blades massaging.
  • Unloading of charge takes place after start of rotation in the opposite direction to the direction of massaging.
  • Through the use of cooling massaging drum it is possible to reduce the massaging time while improving the quality of manufactured products.
  • Loading batch can optionally be mechanized.
Features:
  • Microprocessor controller,
  • Programmable functions: autostart, massaging drum speed, working time, break time, total time of massaging, vacuum degree for each massaging phase, the temperature of batch for tumblers with cooling,
  • The patented system of batch cooling and.
Caution! Loading of the charge to 70% capacity of the tank
Massager Model and Main Characteristics
Type of massager MK 250 MK 600 MK 2x300 MK 900 MK 3x300 MK 1200 MK 2x600 MK 2000
Tank capacity, L 250 600 2x300 900 3x300 1200 2x600 2000
Dimensions (AxBxH), mm
1100x
1000x
1650
1050x
1650x
1650
1050x
1650x
1650
1150x
2250x
1750
1150x
2250x
1750
1200x
2250x
1850
1200x
2250x
1850
14150x
2800x
2200
Massager drive power, kW 1,5 1,5 1,5 2,2

2,2

 2,2 2,2 4,0
Vacuum pumo power, kW 0,75 0,75 0,75 0,75 0,75 0,75 0,75 1,1
Cooling unit power, kW - 1,5 1,5 1,7 1,7 1,7 1,7 2,2
Drum rotation speed, rpm 1,5-9 1,5-9 1,5-9 1,5-9 1,5-9 1,5-9 1,5-9 1,5-9
Weight, kg 450 700 770 750 800 900 1000 1300
