Linear Motion Systems Rack Bridge Module 90x90 mm

Send enquiry

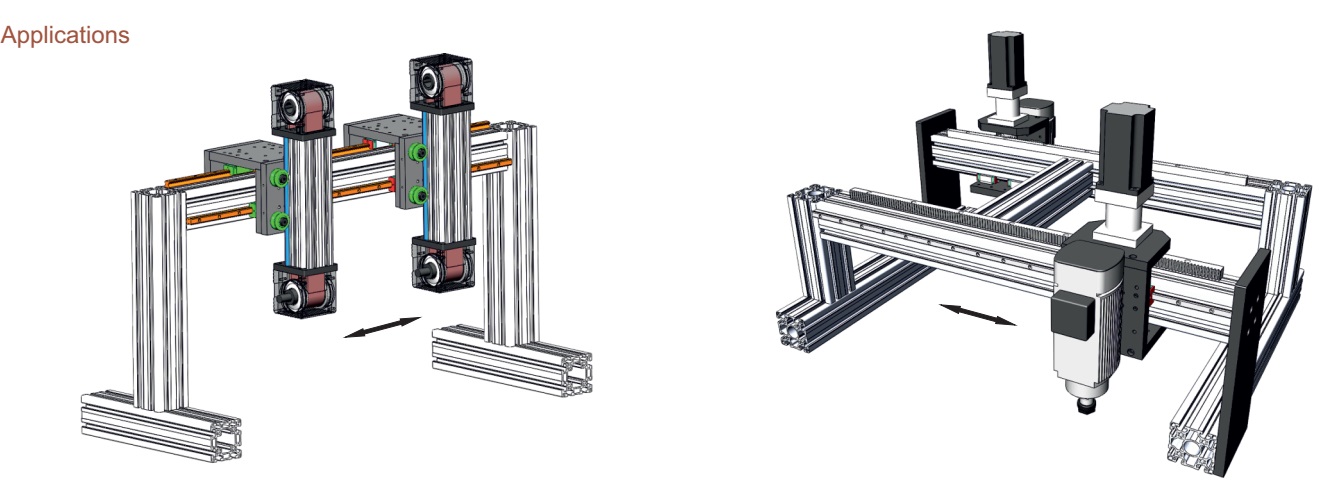

Linear Motion Systems Rack Bridge Module 90x90 mm
Product index: 5.4.08.090090.2.03.2
  • Body: 90x90 Profile (Aluminium 6063) T5;
  • Max Speed: 2,2 m/s.;
  • Pitch: 138.16 mm;
  • Rack Gear: Mod:2 Spur - Mod:2 Helical;
  • Pinion Gear: Mod:2 Z:22 Spur - Mod:2 Z:22 Helical;
  • Linear rail: 15' linear rail;
  • Linear block: 15' narrow linear block;
  • Shaft: Ø12 - Ø20 Chrome Coated (20-33μm), Hardened, Cf53- H7;
  • Gear Pitch: 6.28 mm;
  • Positioning Accuracy: 0.2 mm
