7,5 L polyethylene container for HPLC waste collection

7.5 L polyethylene container for HPLC waste collectio

•     Code: 104.206.858.
•     Made of transparent, inert high density polyethylene.
•     Resistant to acid compounds and corrosive liquids, it does not crack, scratch or corrode.
•     Used for efficient and safe waste liquid chromatography (HPLC).
•     Prevents dangerous or valuable liquids from spilling when the container is turned over or the bottle is broken.
•     Provides greater risk of fluid leakage when disconnected from the fluid removal system.
•     Protects laboratory and staff from exposure to hazardous fumes and waste.
•     Special connections with shut-off valves make it easy to disconnect the container from the system without having to disconnect all the wires of the device.
•     The connection and disconnection is done with the valve closed so there is no risk of vapor dissolution or solvent expansion.
•     Disconnecting the cable is simple and safe and the container is completely closed when transported to the waste collection point.
•     A clear container allows quick check of fluid level.
•     Filling opening with stainless steel flame arrestor that reliably dissipates heat and prevents the contents of the container from igniting.
•     It has an automatic venting of excess steam at high pressures from 0.2 to 0.35 bar.
•     The odor control is provided by a carbon filter that traps 99% of the liquid vapor particles.
•     The filter is connected directly to the steam vent connector.
•     Devices made of polypropylene PN (quick coupling) with EPDM gaskets guarantee good chemical resistance.
•     The oval shape of the cache allows better use of storage space.
•     Complies with OSHA, NFPA, EPA requirements.
•     FM Global certified.
•     7.5 l capacity.
•     Dimensions, D x H: 305 x 37.5 mm.
•     1 connector made of stainless steel for receiving liquid.
•     PTFE gasket (Teflon).
•     Connector 2 for polypropylene vapor drain.
•     PTFE gasket (Teflon).
•     Color white.

Additional order:

•     HPLC Clamps for Solid Hoses (1/16 ") with Bushings (6) Product code: 104.206.823. Compression fittings allow the connection of solid tubes with an outside diameter of 1/16" (2 mm) and an inside diameter of 1 mm.
•     HPLC polypropylene distributor, SN buffer connector. Product Code: 104.206.815. The buffer manifold is attached to manifolds 28177 or 28178. For this reason, we can combine up to 12 tubes of liquids used in HPLC systems to drain into a single collection container.

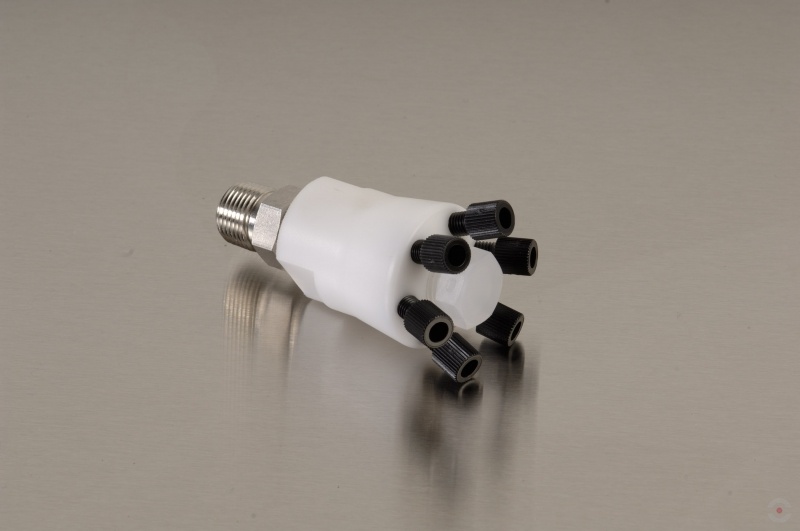

•     HPLC polypropylene dispenser with PN quick coupling. Product Code: 104.206.814. Up to 6 tubes can be connected for drainage of liquid used in HPLC systems into a single collection container.
•     HPLC polypropylene dispenser with MV quick coupling. Product Code: 104.206.813. Allows connection of up to 6 tubes for drainage of liquid used in HPLC systems into a single collection container.
